/ LCD Products / Indoor 27"Wall-mounted LCD Signage with Writing-board

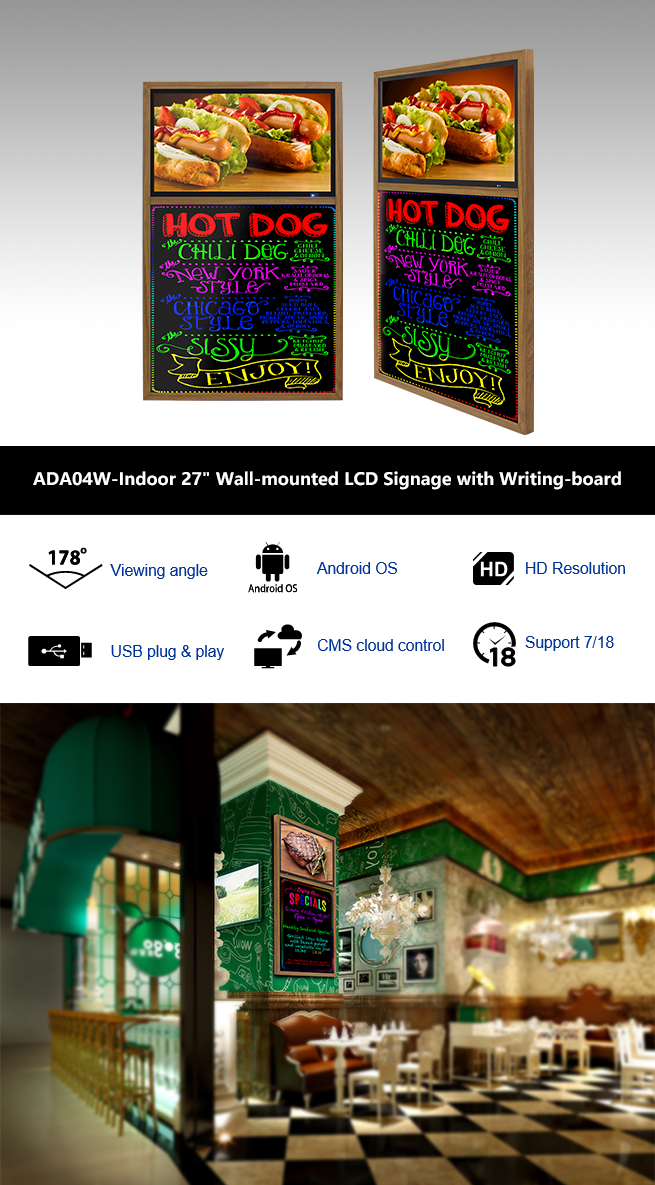

Indoor 27"Wall-mounted LCD Signage with Writing-board


27” or 32” LCD screen with LED writing board
Lightweight wooden grain /black aluminum frame
Signway smart control system
Support Wi-Fi / Ethernet web connection
Fashionable outlook for Indoor use

     Model No.                    ADMA04W-27 & -32  ( Screen Size Option 27” & 32” )
     DESCRIPTION     Wall-mounted  LCD Signage with Writing-board
     Material / color (option)      Metal Frame; color option wooden or black
     Panel Type      27” or 32" LCD ( option )
     Active Area     597.8mm (H) × 336.3mm (V) for 27” screen  product
    (horizontal ×vertical)(mm)     698.4mm (H) × 392.85mm (V) for 32” screen  product
     Pixels H ⅹV      1920 x1080
     Contrast Ratio      1200:1 (typical)
     Operating System      Android  7.1 or Android 5.1 (option)
     Software      Signway
     Transmissions      USB; SD ; WIFI; Wire Network
     Video Types      AVI, MPEG4, WMV, MKV, FLV, MP4, MOV
     Audio Types      MP3、WMA、WAV、APE、FLAC、AAC
     Image Types      JPG, JPEG, BMP, PNG, GIF
     Internal Storage Capacity      2G ROM / 8G or16G RAM
     USB/SD/Micro SC/HDMI      2 x USB, 1 x SD, 1 x Micro SC, 1 x HDMI
     Input Voltage / Ampere      100-240V AC(50/60Hz) / 0.47A
     Power Consumption      67 W
     Work Temperature       25℃ 20h ＞ per day
     Work Humidity      10 ~ 90%
